Product volume: 25.0 cm * 15.0 cm * 5.0 cm
Series: Sensor
Model: ACS712
Type: Other IC
Power: W

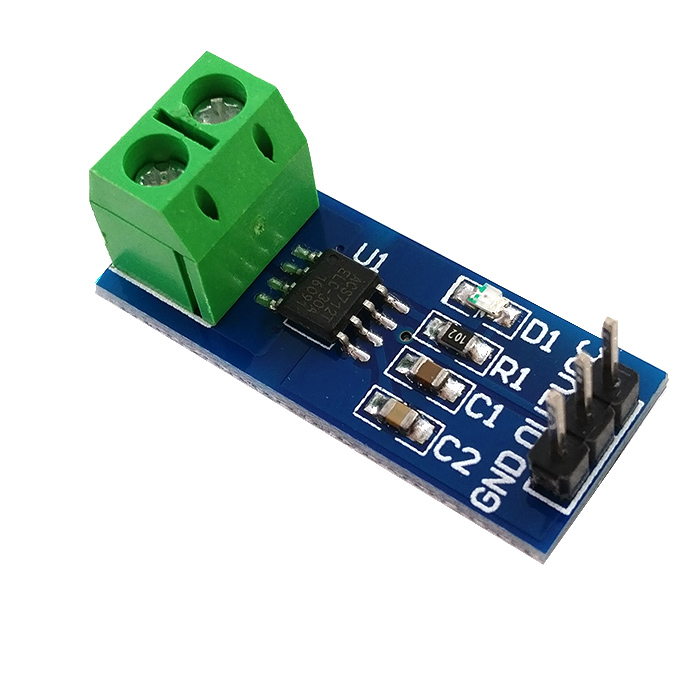

1.Pin 5V power supply, on-board power indicator;
2.No test current through the output voltage is VCC / 2;

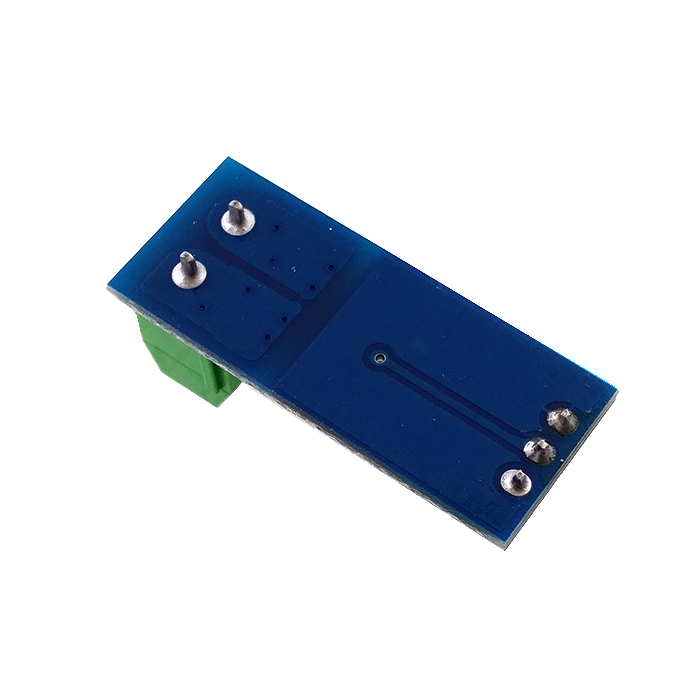

3.PCB board size: 31 (mm) x13 (mm);
5A / 20A / 30A

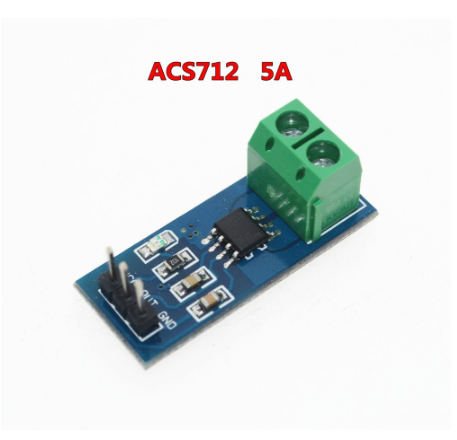

5A:
The current sensor chips: ACS712ELC-05A,
The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV / A;
20A:
The current sensor chips: ACS712ELC-20A;
The module can measure the positive and negative 20 amps, corresponding to the analog output 100mV / A;
30A:
The current sensor chips: ACS712ELC-30A;
The module can measure the positive and negative 30 amps, corresponding to the analog output 66mV / A;
Note: ACS712 is based on the principle of the Hall test, please use this field to avoid impact
You could choose:
1pcs x 5A ACS712 module
1pcs x 30A ACS712 module
1pcs x 20A ACS712 module
