Heavy Duty Stepper Controller

Description:

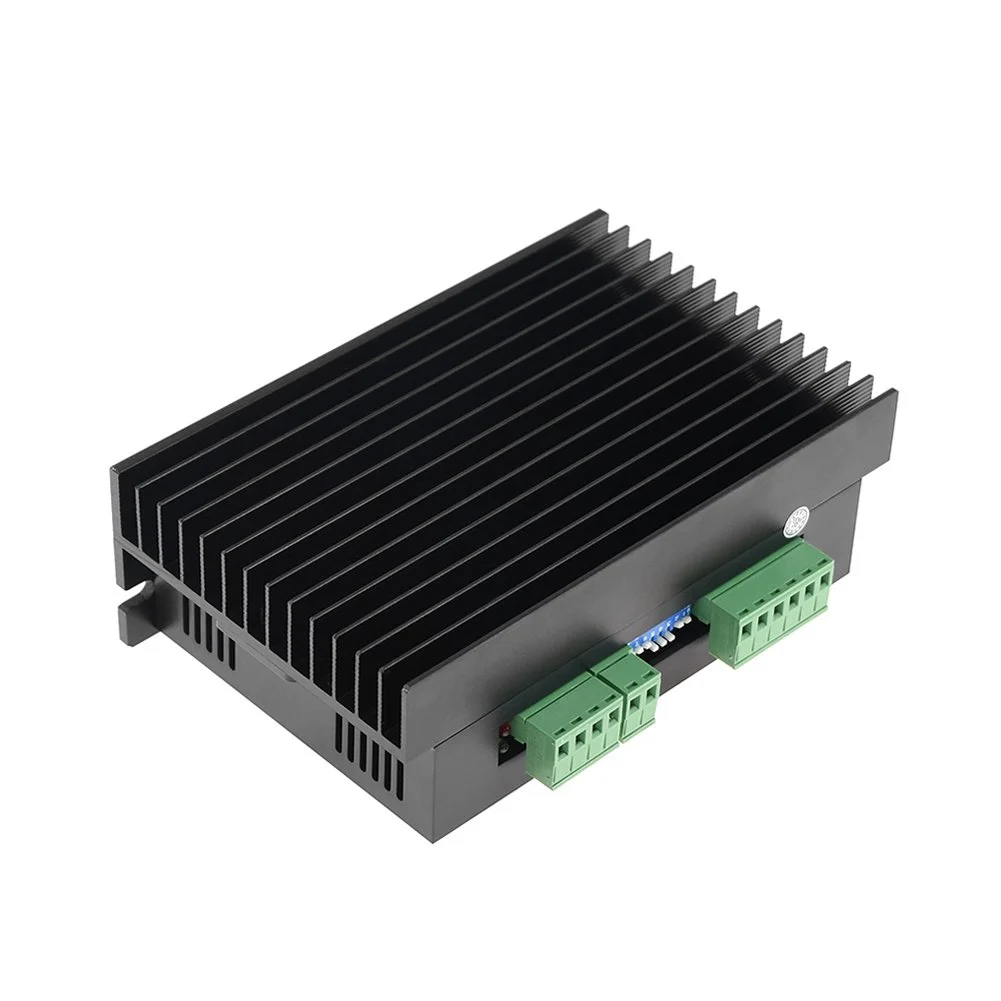

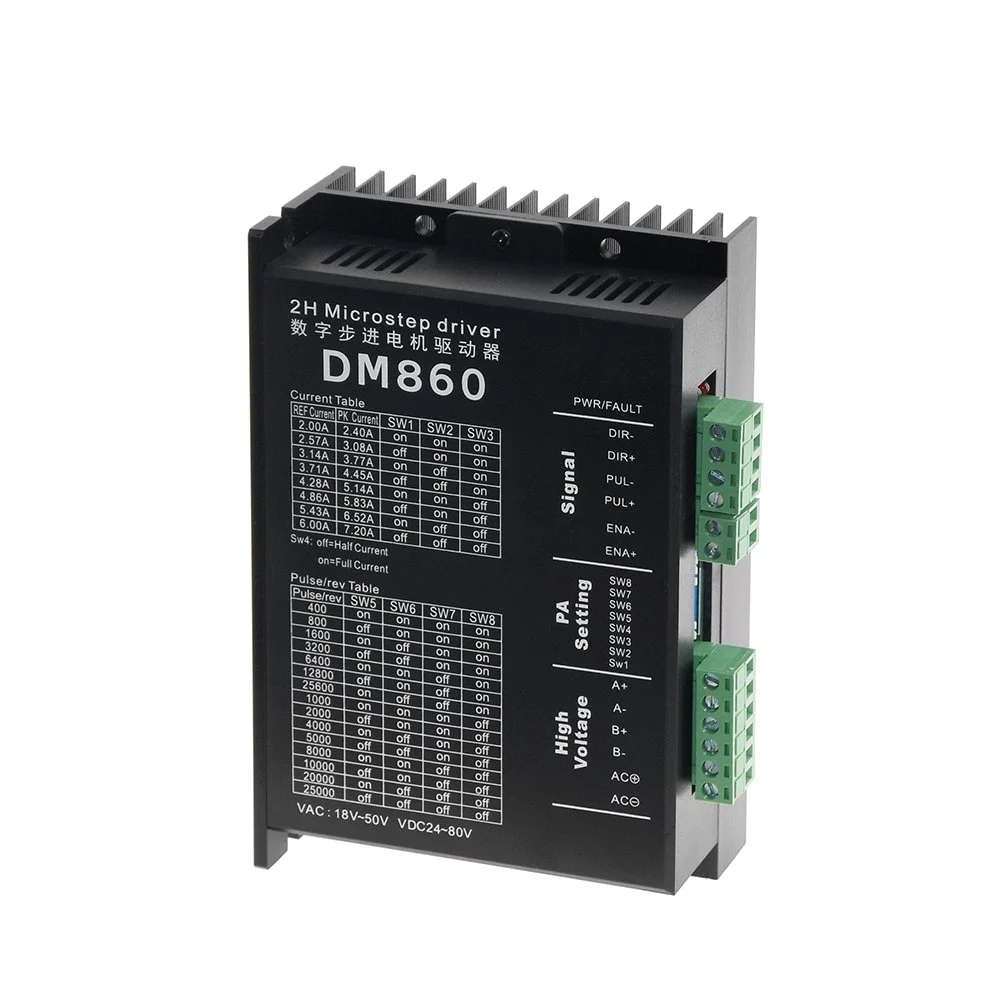

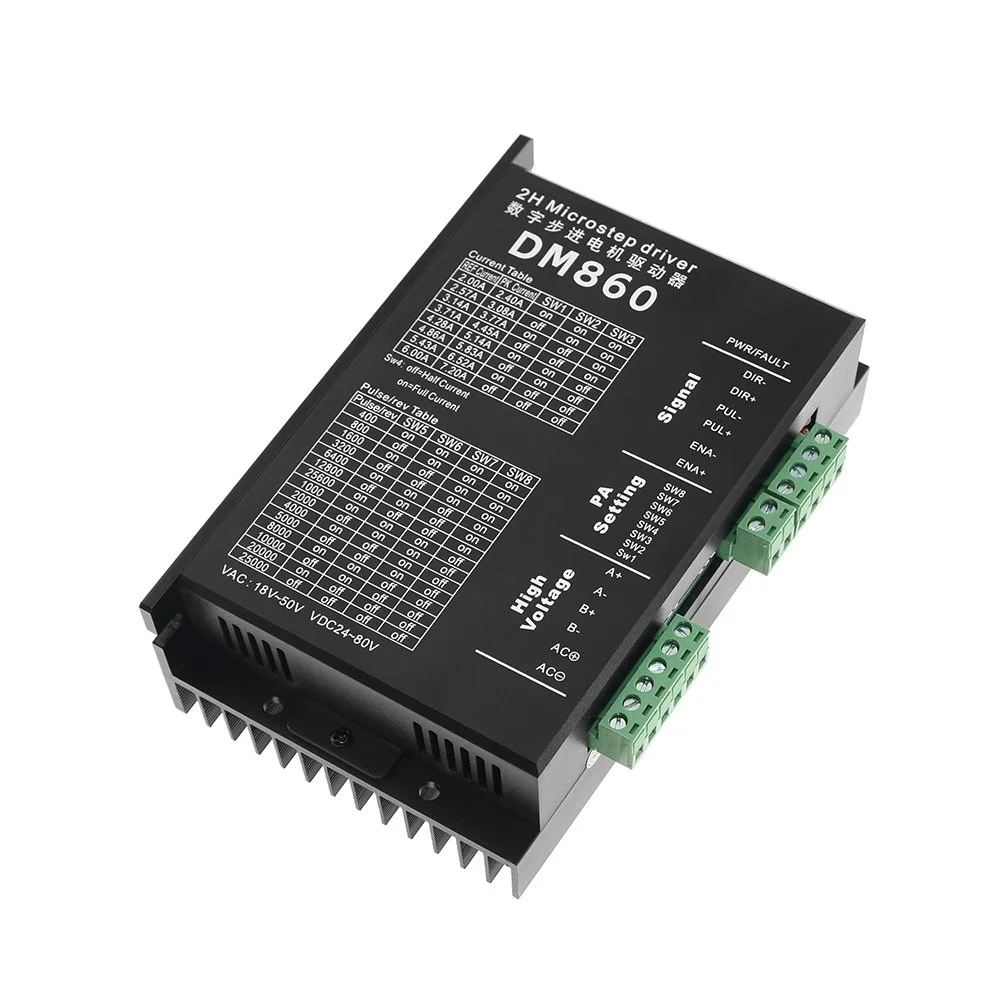

Item type:DM860 stepper motor driver

Current area: 7.2A

Input voltage: 18-80VDC

Can drive 4-wire, 8-wire 2-phase stepper motor
Input voltage: 18-80VDC
Existing area: 7.2A
Pulse input frequency up to 200KHz
TTL compatible and optically isolated inputs
Automatic idle current reduction
Suitable for 2-phase and 4-phase motors
Support PUL / DIR and CW / CCW mode
Overvoltage, overcurrent, phase error protection

Package Include:

1 * DM860 stepper motor driver
